芳纶纤维盘根
^突出的性能是高强度，同时也有较好的耐化学性，高回弹，低冷流，且易快速拆装。广泛应用于各个工业领域，如化工、炼油、医药、食品、制糖、造纸及电力行业；泵、阀和混合器等经常用于旋转的设备。适用于含固体颗粒的易磨损介质，推荐使用于过热蒸汽、溶剂、液化汽、糖浆及其它易磨流体。在未加冷却液的情况下能应用于温度为160度的热水。
建议：泵轴或防护套的表面硬度要达到60HRC。
主要技术参数：
压力 2~20 旋转泵 2.5 Mpa*10bar
往复泵 10
阀 20
温度 -200~280 °C
线速度 2~18 m/s
密度 1.4 g/cm3
PH值 2~13
可根据客户要求定做如下芳纶盘根：
1）芳纶硅胶芯盘根（硅胶芯有红色和黑色可供选择）2）芳纶白四氟混编盘根、角织盘根
3）芳纶黑四氟角织盘根
4）芳纶碳纤维混编、角织盘根
5）芳纶高水基混编、角织盘根
6）芳纶四氟割裂丝角织盘根

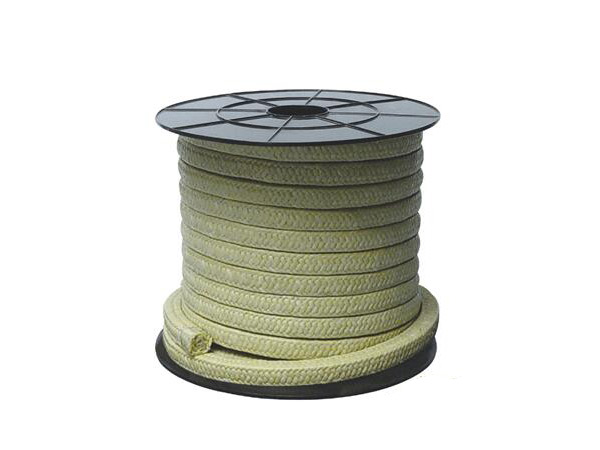

Yellow Kevlar packing is made of high quality aramid fiber impregnated PTFE PTFE emulsion and lubricant additives. Have better chemical resistance, high rebound, low cold flow. With excellent high speed, high modulus properties (known as artificial metal wire). Therefore, it can be used alone or in combination with other packing, as opposed to other types of packing, resistant to particulate crystallization media and higher temperatures. The pump system is a good alternative to asbestos.
The most prominent performance is high strength, but also has good chemical resistance, high rebound, low-flow, and easy to disassemble. Widely used in various industrial fields, such as chemical, oil refining, pharmaceutical, food, sugar, paper and power industries; pumps, valves and mixers often used for rotating equipment. Suitable for abrasive materials containing solid particles, recommended for overheated steam, solvents, liquefied petroleum gas, syrup and other easy to wear fluid. Can be applied to hot water at a temperature of 160 degrees without coolant.
Recommendation: The surface hardness of the pump shaft or protective sleeve to reach 60HRC.
The main technical parameters:
Pressure 2 ~ 20 rotary pump 2.5 Mpa
* 10bar
Reciprocating pump 10
Valve 20
Temperature -200 ~ 280 ° C
Line speed 2 ~ 18 m / s
Density 1.4 g / cm3
PH value of 2 to 13
Aramid packing can be customized according to customer requirements as follows:
1) aramid silicone core packing (silicone core with red and black to choose from)
2) Kevlar white PTFE mixed packing, angle woven packing
3) Kevlar black PTFE woven packing
4) Kevlar carbon fiber mixed, woven angle packing
5) Kevlar high water-based mixed, woven angle packing
6) Kevlar PTFE split wire angle woven packing
